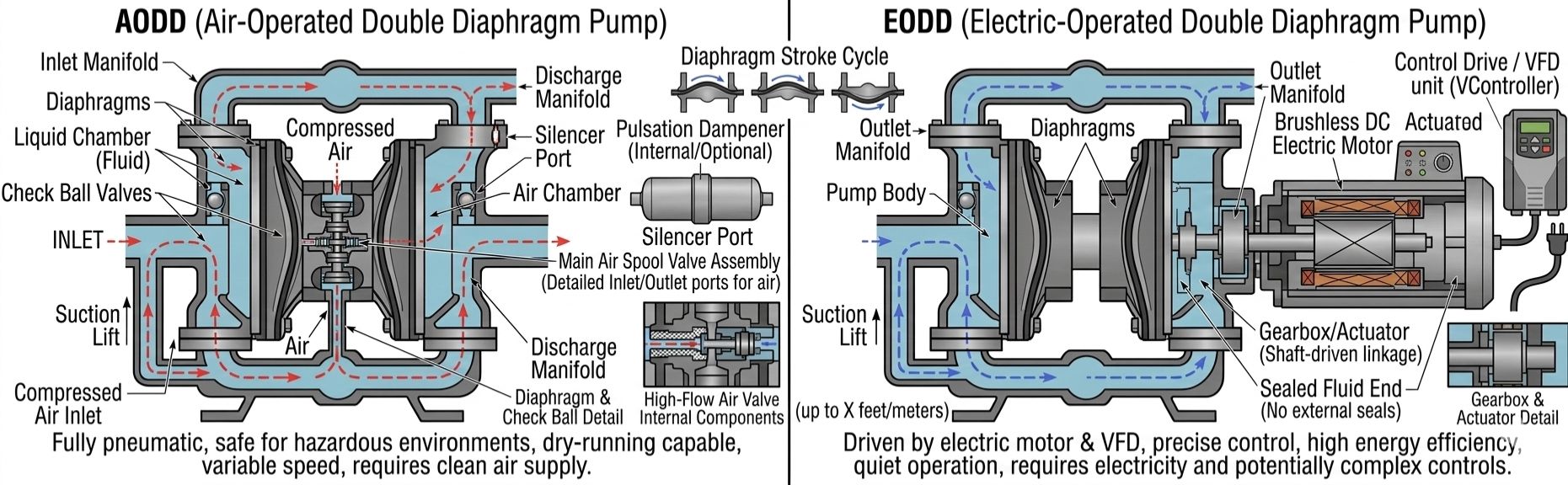

AODD Pumps vs EODD Pumps: What Is the Difference and Which Should You Choose?

Air Operated Double Diaphragm (AODD) and Electric Operated Double Diaphragm (EODD) pumps are both positive displacement diaphragm pumps that move fluid through the alternating motion of two flexible diaphragms. The fundamental pumping action is the same — what is different is how that motion is generated, how accurately it can be controlled, what it costs to run, and which operating environments each type is suited for.

For many industrial plants currently running AODD pump, the question is not just 'which is better' but specifically 'does the energy, control, and cost case justify converting existing AODD installations to EODD?' This guide answers both questions in full — including the compressed air energy cost mathematics, a five-year total cost of ownership comparison, a diaphragm material selection reference, and a structured decision framework to guide the selection for any specific application. For context on related pump technologies used in industrial fluid handling, see also the gear pump range, which serves different viscosity and pressure requirements in process applications.

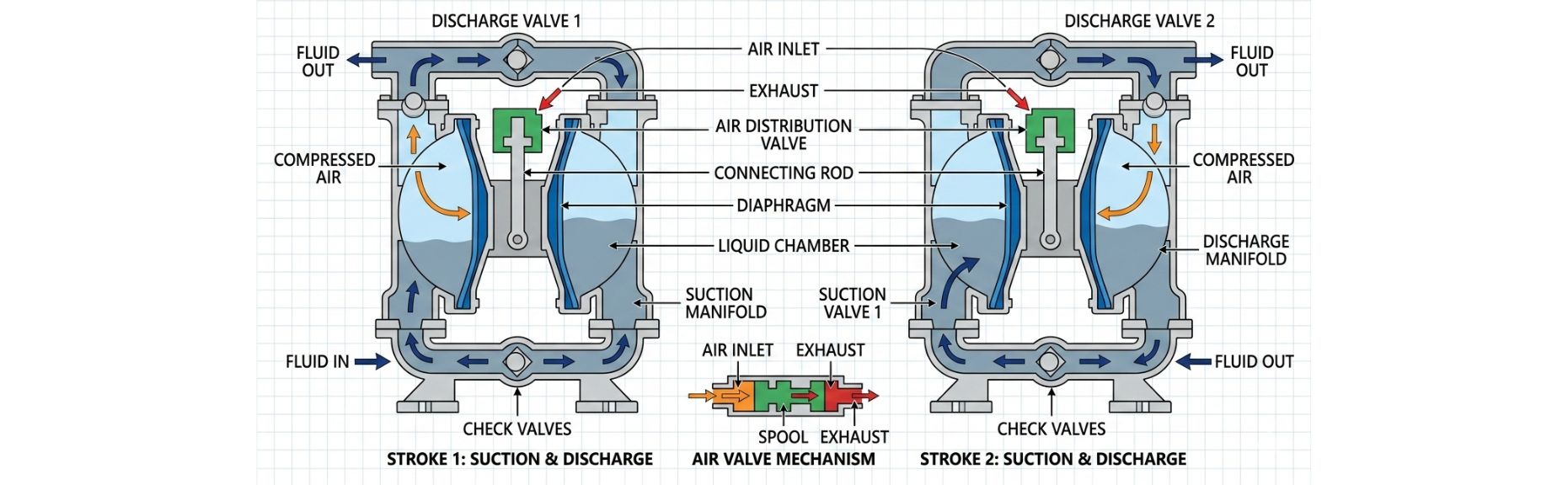

What Is an AODD Pump — and How Does It Actually Work?

An AODD pump uses compressed air as its motive force. Compressed air is supplied to the pump's central air distribution valve, which alternately directs air pressure to one diaphragm chamber while simultaneously exhausting air from the opposite chamber. This creates a push-pull motion: one diaphragm is pushed outward (discharging fluid) while the other is pulled inward (drawing fluid in). When the air valve senses that one stroke is complete, it switches — the process reverses and the other diaphragm completes its stroke.

The Air Distribution Valve — The Heart of AODD Operation

The air distribution valve (also called the air shift valve or pilot valve) is the critical component that makes AODD pumps self-cycling. It requires no external control signal — it is triggered mechanically or pneumatically by the position of the diaphragm at the end of each stroke. This is why AODD pumps are inherently simple to operate: connect compressed air, open the fluid inlet and outlet, and the pump runs. No motor starter, no variable frequency drive, no control panel required.

However, this simplicity comes with a limitation: the air valve creates a characteristic stall point. If downstream back-pressure exceeds the supply air pressure, the diaphragm stalls mid-stroke — the pump stops. This is actually a useful feature in some applications (automatic pressure relief behaviour), but it means AODD flow rate is sensitive to both air supply pressure and downstream resistance in a way that EODD is not.

AODD Pulsation — Cause and Management

Because the two diaphragms discharge on alternate strokes rather than simultaneously, AODD pumps produce pulsating flow. The pulse frequency is determined by the stroke rate (cycles per minute), which itself depends on air supply pressure, air flow volume, and fluid viscosity. At typical operating conditions, an AODD pump produces one pressure pulse per diaphragm stroke — creating a characteristic rhythmic beat that can cause vibration in pipework and pulsation-related measurement errors in flow instrumentation.

Pulsation dampers (surge suppressors) installed on the discharge line are the standard mitigation. A properly sized pulsation damper reduces peak-to-trough pressure variation from 30–50% of mean pressure to under 5% — effectively smoothing the flow for downstream instruments and sensitive processes.

What Is an EODD Pump — and How Does Its Drive Mechanism Differ?

An EODD pump replaces the compressed air drive with an electric motor, but it is not simply an AODD pump with the air valve swapped for a motor. The mechanism by which the motor drives the diaphragms determines the pump's performance characteristics.

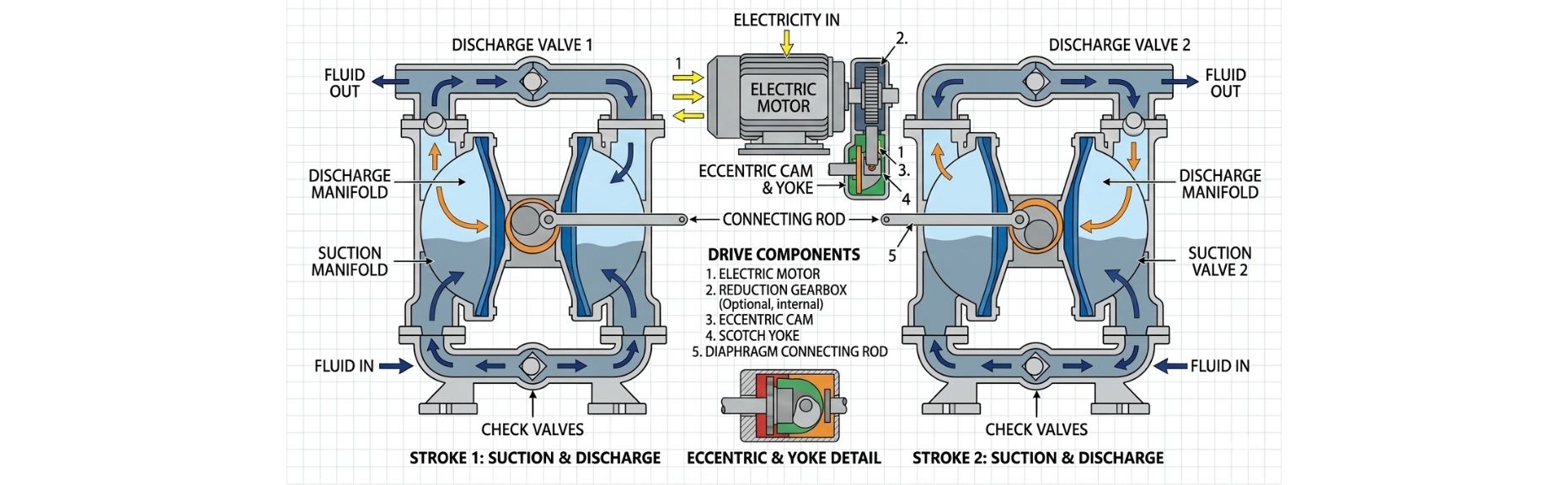

Eccentric Drive Mechanism (Most Common EODD Design)

In the most widely used EODD design, the electric motor drives an eccentric shaft or crankshaft mechanism. As the eccentric rotates, it converts the motor's rotary motion into the linear reciprocating motion needed to drive the diaphragms back and forth. Unlike the AODD's air-shifted alternating strokes, the eccentric drive is mechanically timed — both diaphragms move in a precisely defined, predictable relationship to motor shaft position. This mechanical coupling gives EODD pumps their defining advantage: flow rate is directly and linearly related to motor speed, with no dependence on supply pressure variation or air valve stall.

Linear Actuator Design (High-Precision EODD)

Some EODD designs use a linear electric actuator (servo or stepper motor driven) directly connected to each diaphragm. This approach provides the highest possible metering precision — stroke length, speed, and force can each be independently programmed. Linear actuator EODD pumps are used in precision chemical dosing, pharmaceutical batch processes, and laboratory applications where flow accuracy to ±0.5% or better is required.

EODD Flow Control — Why It Is Fundamentally Better

In an AODD pump, flow rate is adjusted by throttling the air supply pressure or air volume using a regulator. This is a blunt instrument: changes in downstream pressure affect the stroke rate, so the relationship between air regulator setting and actual flow rate is not linear and shifts as system conditions change. Accurate flow control with an AODD pump requires a downstream flow meter feeding back to a control system — adding cost and complexity.

In an EODD pump connected to a variable frequency drive (VFD), motor speed is adjusted directly and precisely. Because the eccentric mechanism is mechanically coupled to the diaphragm, flow rate is proportional to motor speed — a 10% reduction in motor speed gives exactly a 10% reduction in flow. This makes EODD pumps inherently suitable for automated process control, batching systems, and any application requiring a stable set-point flow rate.

EODD Pulsation — Significantly Reduced

Because the EODD's eccentric mechanism drives both diaphragms in a controlled sinusoidal motion rather than the AODD's abrupt air-shifted strokes, pulsation amplitude is substantially lower. At equivalent flow rates, a well-designed EODD pump typically produces pressure pulsation of 5–10% of mean pressure — compared to 30–50% for an AODD pump without a pulsation damper. For applications using in-line flow measurement, pH sensors, or other instrumentation sensitive to pulsation, this difference is significant.

Energy Efficiency — The Compressed Air Cost Calculation

The energy efficiency comparison between AODD and EODD is the most quantifiable difference, and it is often the primary financial driver for EODD conversion projects. The numbers are more substantial than most users initially expect.

Why Compressed Air Is an Expensive Energy Source

A compressed air system converts electrical energy into potential energy stored in pressurised air. The conversion process is inherently inefficient:

• A typical industrial air compressor converts only 10–15% of input electrical energy into useful pneumatic work at the point of use
• The remaining 85–90% is lost as heat in the compressor, heat in the compressed air itself (which must be cooled and dried before distribution), and pressure drops across the distribution network, filters, and regulators
• At the AODD pump itself, additional energy is lost in the air exhaust — compressed air that has done useful work on the diaphragm is discharged to atmosphere at each stroke, taking its remaining energy with it

Practical result: To deliver 1 kW of useful mechanical work to the diaphragm of an AODD pump, a compressed air system typically consumes 7–10 kW of electrical energy at the compressor. An EODD pump delivering the same mechanical work consumes approximately 1.1–1.3 kW of electrical energy — an efficiency ratio of 6:1 to 8:1 in favour of EODD.

Five-Year TCO Comparison Example

The following example illustrates the financial case for a medium-duty chemical transfer application running 16 hours per day, 300 days per year.

These are illustrative figures based on typical Indian industrial electricity costs and compressed air system efficiencies. Actual savings depend on air compressor efficiency, electricity tariff, pump duty cycle, and fluid conditions. For applications running under 4 hours per day, the energy saving case weakens and other factors (ATEX requirement, control need, portability) should drive the decision.

Hazardous Area Classification — ATEX, IECEx, and Where Each Pump Fits

For plants handling flammable, explosive, or volatile fluids, the area classification (ATEX in Europe/India, IECEx globally) is often the deciding factor — and it is one the competitor's guide addresses only superficially.

Zone Classification Reference

A critical nuance: AODD pumps are intrinsically safe in hazardous zones because the compressed air supply line carries no ignition risk. Even in Zone 0, where a single spark would be dangerous, a standard AODD pump with appropriate static grounding is compliant. EODD pumps with ATEX certification are available for Zone 1 and Zone 2, but they carry a significant cost premium (typically 2–3x the standard EODD price) and require more rigorous installation standards.

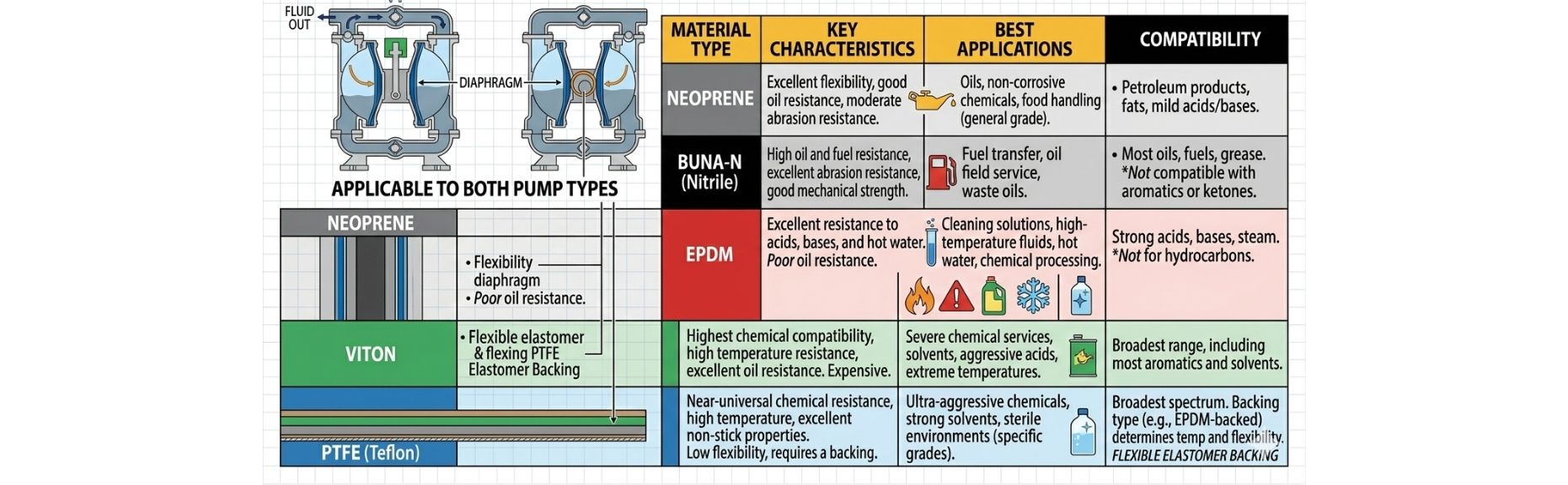

Diaphragm Material Selection — Applicable to Both AODD and EODD

Both AODD and EODD pumps use flexible diaphragms as the fluid-contact pumping element. The diaphragm material determines chemical compatibility, temperature range, flex life (number of cycles before fatigue failure), and suitability for abrasive or high-solid fluids. This selection is identical regardless of whether the pump is air or electrically driven.

For aggressive chemical applications, specify PTFE-laminated diaphragms (a PTFE face bonded to a Santoprene or EPDM backing). This gives the chemical resistance of PTFE with the flex fatigue life of an elastomeric backing material — better than either material alone in the most demanding services.

Noise Levels — A Practical Comparison

Noise is a frequently overlooked factor in pump selection, particularly where pumps are installed near control rooms, laboratories, or in facilities with occupational noise exposure limits (typically 85 dB(A) 8-hour TWA under Indian Factories Act provisions).

For facilities with multiple AODD pumps running simultaneously in an enclosed pump room, cumulative noise levels regularly exceed 85 dB(A) — requiring hearing protection and triggering occupational health compliance requirements. EODD pumps in the same installation typically remain below this threshold without additional mitigation.

Maintenance Requirements — What Each Pump Needs in Service

Both pump types are lower maintenance than shaft-sealed rotary pumps because the diaphragm is the only dynamic seal — there are no mechanical face seals, no shaft bearings in the fluid stream, and no impeller clearances to maintain. However, AODD and EODD have different maintenance profiles.

Net maintenance conclusion: AODD pump maintenance is simpler — any technician familiar with the pump can replace a diaphragm or clean the air valve. EODD pump maintenance requires basic electrical competency for motor and VFD service in addition to the diaphragm and check valve work. However, the elimination of the air supply system (compressor maintenance, FRL units, distribution pipework) reduces overall plant maintenance workload for EODD installations.

Portability, Installation Flexibility, and Remote Operation

This is one of the clearest differentiators — and one where AODD pumps have a genuine, unchallenged advantage in certain scenarios.

AODD Portability Advantages

• No electrical power required at the pump location — only a compressed air hose connection
• Can operate in areas with no electrical infrastructure (remote mining sites, field construction, temporary installations)
• Intrinsically safe operation without ATEX certification cost — suitable for Zone 0 hazardous areas
• Can be moved between locations without electrical installation work — connect air hose, open valves, pump runs
• Trolley-mounted AODD pumps are standard portable equipment in many chemical plants and refineries for drum emptying, tanker unloading, and temporary transfer duties

EODD Installation Requirements

• Requires a power supply at the installation point — 3-phase for most industrial sizes, single phase for small units
• Requires appropriate electrical enclosure rating for the installation area (IP55 minimum for outdoor; ATEX-rated for hazardous zones)
• VFD installation adds additional panel space and wiring requirements
• Fixed installation is the norm — EODD pumps are not portable in the way AODD pumps are
• Commissioning requires an electrically competent person for motor rotation check and VFD parameter setting

For applications that need to be moved, repositioned seasonally, or operated in locations without electrical infrastructure, AODD remains the only practical choice regardless of energy efficiency considerations. The EODD energy efficiency advantage only applies when a permanent installation is both possible and appropriate.

Converting from AODD to EODD — When It Makes Sense and How to Do It

For plants with multiple permanently installed AODD pumps in non-hazardous or Zone 2 areas, conversion to EODD is increasingly common as a capital project with a calculated payback period. Here is a structured approach to evaluating and executing a conversion:

Step 1: Identify Conversion Candidates

• Pumps running more than 8 hours per day in continuous or near-continuous duty — highest energy saving potential
• Pumps in non-hazardous areas or Zone 2 areas where standard or ATEX Cat 3 EODD is available
• Pumps where precise flow control is currently being achieved by expensive downstream instrumentation and control
• Pumps causing noise or pulsation issues in sensitive areas

Step 2: Calculate the Energy Saving

For each candidate pump, calculate:

• Current air consumption (Nm³/hr) — from air flow meter on the pump's supply line, or from pump specification at actual operating conditions
• Compressed air cost (₹/Nm³) — from plant energy manager: typically ₹2–4 per Nm³ of compressed air at Indian electricity tariffs
• Annual operating hours
• Equivalent EODD power consumption at the same flow rate (from EODD pump specification, typically 0.5–4 kW depending on pump size and flow)
• Annual saving = (Air cost × consumption × hours) − (EODD kW × hours × electricity tariff)

Step 3: Assess Installation Requirements

• Confirm available electrical supply capacity at the pump location
• Confirm area classification — Zone 0 pumps cannot be converted
• Check if existing pipework connections (port size, flange standard) are compatible with the EODD replacement model
• Assess whether a VFD is required (recommended for all variable-flow applications) and where it will be mounted

Step 4: Execute the Conversion

• Install electrical supply and VFD panel before decommissioning the AODD pump — minimise downtime
• Use the same port connections where possible — most EODD pumps are available in matching connection sizes to common AODD models
• Retain the AODD pump as a spare for emergency backup service — compressed air backup capability has value during electrical outages
• Set VFD speed to match the required flow rate and verify with downstream flow measurement before handing back to operations

The Decision Framework — How to Choose for Your Application

Use this framework to make the AODD vs EODD decision systematically. Work through the questions in order — the first question that produces a definitive answer ends the analysis.

AODD vs EODD — Complete Comparison Reference

Need Help Selecting Between AODD and EODD for Your Application?

Unique Pump Systems manufactures and supplies AODD pumps across a full range of materials — Polypropylene, PTFE, Aluminium, and Stainless Steel — in sizes from ½" to 3" for industrial, chemical, and hazardous area applications. For guidance on whether your specific application is best served by AODD or EODD technology, or to discuss a conversion from air-operated to electrically-driven diaphragm pumping, contact our application engineering team. For full specifications and models, see our gear pump and AODD pump range pages or reach out directly for a recommendation tailored to your fluid, flow, and installation requirements.

Summary

AODD and EODD pumps share the same positive displacement diaphragm pumping mechanism and the same fluid-contact components. The critical differences are in how the diaphragm motion is generated, the energy efficiency of that generation, the precision and ease of flow control, the suitability for hazardous areas, and the total cost of ownership over a pump's service life.

AODD pumps are the right choice for hazardous zone applications, portable or remotely located installations, and intermittent duty where the energy efficiency penalty is not significant. EODD pumps are the right choice for continuous-duty fixed installations in safe or Zone 2 areas, wherever precise flow control is needed, and wherever the compressed air energy cost at an AODD pump represents a significant ongoing operating cost. The typical payback period on the EODD capital premium over AODD is 12–24 months for pumps running 8+ hours per day in continuous industrial service.

Frequently Asked Questions

Can an EODD pump completely replace an AODD pump in all applications?

No. EODD pumps cannot be used in ATEX Zone 0 environments, cannot be made truly portable in the way AODD pumps can, and require a permanent electrical supply. For these scenarios, AODD remains the only practical option. For fixed installations in safe areas or Zone 2, EODD is generally the better long-term choice.

What happens when an AODD pump runs dry?

An AODD pump can run dry indefinitely without damage to the pump — the diaphragms continue to flex and the air valve continues to cycle. However, if the fluid being pumped was providing heat dissipation or lubrication to any downstream component (e.g., a control valve), the dry running may affect those components. Some AODD pump materials (particularly PTFE diaphragms) will generate static electricity during dry running in flammable fluid service — ensure grounding is maintained.

How do I reduce pulsation from my AODD pump?

Fit a correctly sized pulsation damper (surge suppressor) on the discharge line, close to the pump outlet. The damper volume should be sized based on the pump's stroke volume and the allowable pressure variation for the application — your pump supplier can provide sizing guidance. Additionally, ensuring the pump runs at a consistent stroke rate (stable air supply pressure) reduces the irregularity of the pulse pattern.

Is the diaphragm life the same in AODD and EODD pumps?

Diaphragm life is primarily determined by the number of flex cycles, the fluid chemistry, and the differential pressure across the diaphragm — all of which are similar in AODD and EODD pumps running at equivalent duty. EODD pumps with eccentric drives may have a slightly smoother diaphragm stroke profile than AODD air-shifted strokes, which can extend diaphragm life in some designs. In practice, diaphragm replacement intervals are similar for both pump types under equivalent operating conditions.

What is the maximum flow rate available in EODD pumps?

EODD pump technology is currently most available in sizes up to approximately 3-inch port connections with flow rates up to 800–1000 LPM — similar to the AODD range. For very high flow requirements (above 1000 LPM), AODD pumps in larger sizes or multiple pump arrangements are more commonly available. EODD technology in larger sizes is an active area of product development.
